RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China

Name: RUIDA RDV6555GNET CO2 Laser Vision Cutting Controller China
Brand: RUIDA
Price: 1 USD

Wholesale RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China from china suppliers

Brand Name : RUIDA

Model Number : RDV6555G-NET

Certification : CE FCC ROHS

Place of Origin : Mainland China

MOQ : 1

Price : Negotiable - Inquire Within

Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram

Supply Ability : 100 sets/day

Delivery Time : 5-8 days

Packaging Details : Carton Packing

Laser source : CO2 glass tube, CO2 RF tube and UV lasers

Y axis double drive : Support dual-drive output and have synchronous protection function

Laser control : Support PSO, PSV, PSP, FSP laser control methods

Axis : 5

Laser channel : 1

Communication : Ethernet, USB

Panel : 5” color screen + keys and 7” touch screen is optional

Feeding : Support visual array processing and roll to roll cutting

Camera : Cameras of 1.3 and 5 megapixels are available.

Light source : LED red and white circular light source

Cutting : Mark point vision positioning cutting

Engraving : Support

Encryption : Support

Onboard clock : Support

Firmware : Support the remote upgrade of mainboard and panel program

Software : LSWorks

Language : Simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

Size : Panel: L202mm*W145mm*H42.1mm Mainboard: L270mm*W157mm*H55mm

Contact Now

RUIDA RDV6555G-NET CO2 Laser Vision Controller The Cutting Control System For Accurate Cutting

Discroption of RDV6555G-NET :

The RDV6555G-NET is an advanced vision-guided cutting control system developed by Ruida Technology, building upon the robust foundation of the RDC6555G. This system incorporates a network camera and utilizes Mark point technology for image capturing, enhancing its precision in film cutting applications. It boasts improved hardware stability, a rich array of motion control design schemes, and superior resistance to high voltage and electrostatic interference, ensuring reliable operation in various industrial environments. The RDV6555-NET's human-machine operating system, based on a 5-inch LCD, offers a user-friendly interface coupled with powerful functionality, making it an optimal choice for high-precision cutting tasks. With its advanced vision system, it supports MARK point visual positioning cutting and array processing, catering to the needs of non-metal thin film materials, ceramics, and high molecular materials with accuracy and efficiency.

Product Features:

1.Self-Contained System: Offers integrated dual-drive motion control for standalone operations.
2.Advanced Laser Functionality: Includes PSO function for enhanced laser control.
3.Precise Cutting Capabilities: Equipped with algorithms for accurate full and half-cut operations.
4.Mark Point Technology: Supports visual positioning and array processing with Mark point technology.
5.Specialized for Non-Metal Films: Ideal for precision cutting of non-metallic thin film materials.

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China

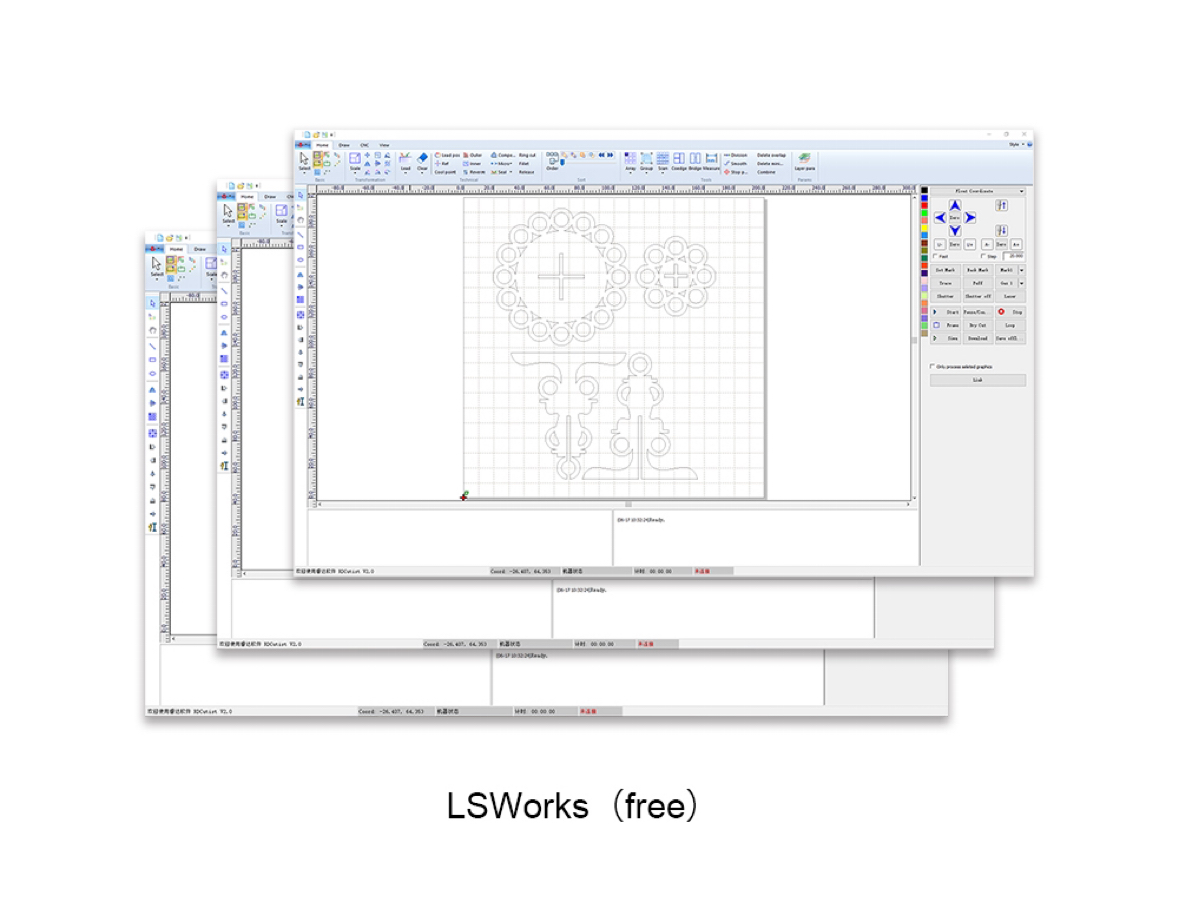

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.
RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China

Application:

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China Images
